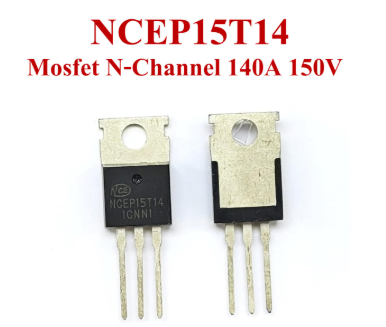

NCEP15T14

 Type Designator: NCEP15T14
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings

   Pd ⓘ - Maximum Power Dissipation: 320 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 140 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   Qg ⓘ - Total Gate Charge: 80 nC
   tr ⓘ - Rise Time: 36 nS
   Cossⓘ - Output Capacitance: 690 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0062 Ohm
