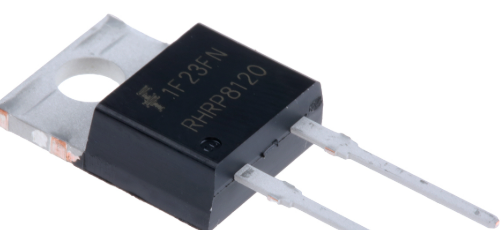

RHRP 8120 DIODE

Specifications RHRP8120
TYP
MAX
UNITS
Electrical Specifications TC = +25oC, Unless Otherwise Specified
SYMBOL
VF
TEST CONDITION
IF = 8A, TC = +25oC
MIN--
3.2
V
IF = 8A, TC = +150oC
IR
tRR
VR = 1200V, TC = +25oC
VR = 1200V, TC = +150oC------
2.6
100
500
IF = 1A, dIF/dt = 100A/µs-
V
µA
µA- 55 n
s
I
F = 8A, dI
F/dt = 100A/µs-
t
A IF
 = 8A, dIF/dt = 100A/µs
tB
QRR
CJ
RθJC
DEFINITIONS
IF = 8A, dIF/dt = 100A/µs
IF = 8A, dIF/dt = 100A/µs
VR = 10V, IF = 0A- 70 n
s----
34
30
130
25----
ns
ns
nC
pF-- 2 oC/W
VF = Instantaneous forward voltage (pw = 300µs, D = 2%).
IR = Instantaneous reverse current.
tRR = Reverse recovery time (See Figure 2), summation of tA + tB.
tA = Time to reach peak reverse current (See Figure 2).
tB = Time from peak IRM to projected zero crossing of IRM based on a straight line from peak IRM through 25% of IRM (See Figure 2).
RθJC = Thermal resistance junction to case.
EAVL = Controlled avalanche energy (See Figures 10 and 11).
pw = pulse width.
D = duty cycle
